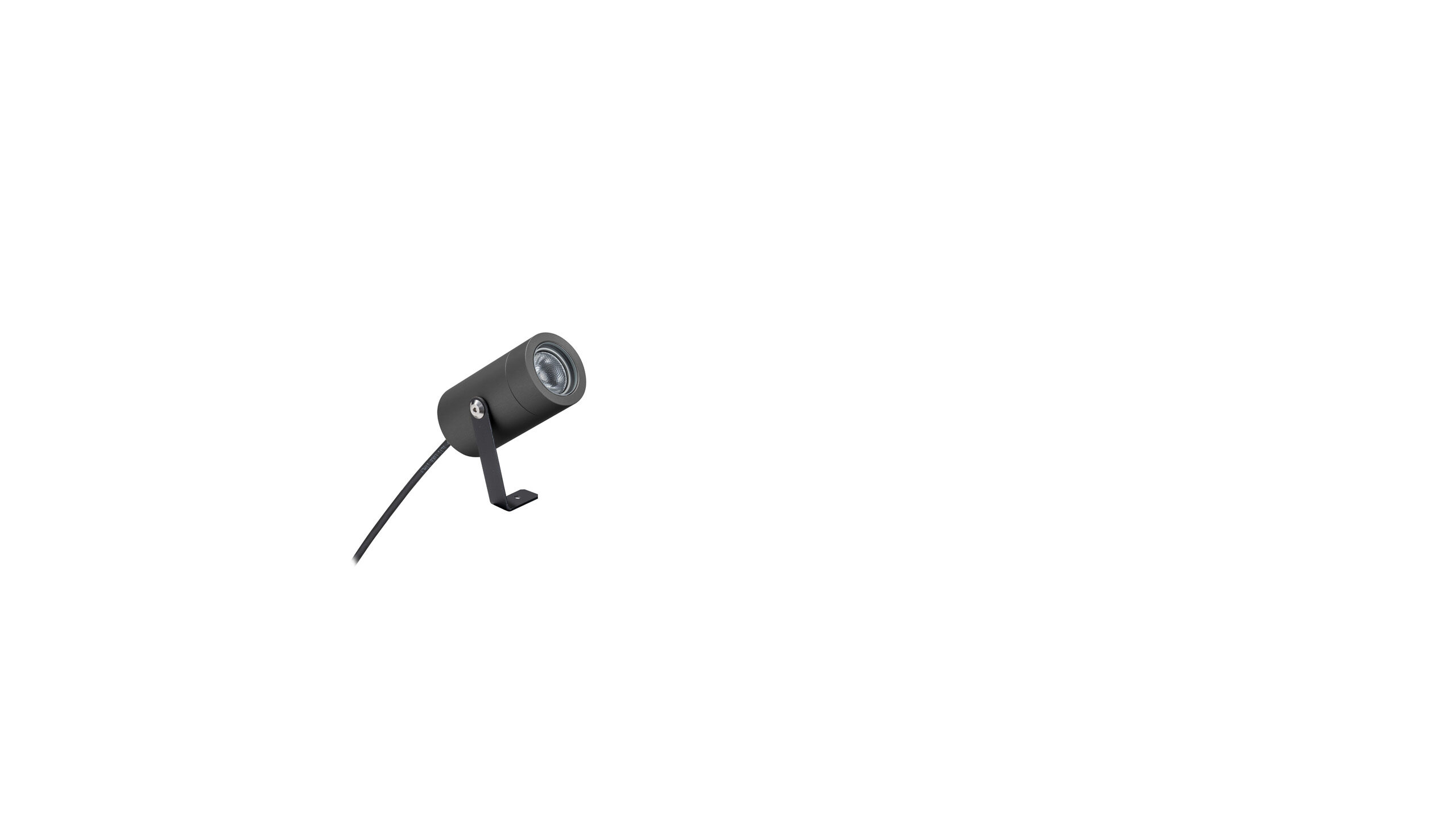

LUX SPOT

Proiettore orientabile che unisce eleganza e raffinatezza a resistenza e affidabilità. Mimetizzandosi tra la vegetazione, enfatizza forme e colori tramite la luce. Lux Spot è un proiettore orientabile in alluminio anodizzato disponibile nelle tre dimensioni S,M,L. È proposto con differenti fasci ottici, temperature colore e finiture. La possibilità di integrare varie tipologie di accessori offre inoltre, ampie opportunità di installazione e personalizzazione della luce.

  • LUX SPOT / S

    Material: Anodized aluminium

    Dimensions: M

    CCT/Colored LED: 2700K, 3000K, 4000K / Blue, Green, Amber, Red

    CRI: >90

    Adjustability: Yes

    Wattage: 2,3W (max 700mA) / Coloured LED versions: 2,1W (max 700mA)

    Feeding: 350mA/ 500mA/ 750mA

    Dimmable: Yes

    IP: 67

    Finishes:

    AN

    Ink Black

    AM

    Mocha Brown

    AA

    Silver Grey

    LUX SPOT / S
    Max 700mA (2,3W)
    LXSLS01
    Optical lens
    01 11°
    04 25°
    CCT(K)
    D 2700K
    W 3000K
    N 4000K
    Delivered flux
    174lm (700mA)
    194lm (700mA)
    205lm (700mA)
    CRI
    >90
    >90
    >90
    Bezel
    D Dark
    F Flat
    Finishes
    AA Silver Grey
    AM Mocha Brown
    AN Ink Black
    VE Pine Green
    Opt. Internal Accs.
    H Honeycomb
    O Opal filter
    Example Code: LXSLS0101DFAAH

    Note:
    Dimensions with Dark Bezel (W,D,H):ø36x74x64mm
    Dimensions with Flat Bezel (W,D,H):ø36x64x64mm
    Compatible controls: 1-10V / DALI / Triac / Casambi.
    Driver not included
    Cable length 2m
    Series connection

    -20/50/max700mA
    LUX SPOT / S (Coloured LEDs versions)
    Max 700mA (2,1W)
    LXSLS06
    Optical lens
    01 11°
    04 25°
    Colored LEDs
    A Amber
    B Blue
    R Red
    V Green
    Bezel
    D Dark
    F Flat
    Finishes
    AA Silver Grey
    AM Mocha Brown
    AN Ink Black
    Opt. Internal Accs.
    H Honeycomb
    O Opal filter
    Example Code: LXSLS0601BFAAH

    Note:
    Dimensions with Dark Bezel (W,D,H):ø36x74x64mm
    Dimensions with Flat Bezel (W,D,H):ø36x64x64mm
    Compatible controls: 1-10V / DALI / Triac / Casambi.
    Driver not included
    Cable length 2m
    Series connection

    -20/50/max700mA
    Optional Internal Accessories

    H

    Honeycomb
    Black finish

    O

    Opal filter

    Note: Not included. To be requested when ordering/ Non inclusi. Da richiedere al momento dell'ordine

    Optional External Accessories

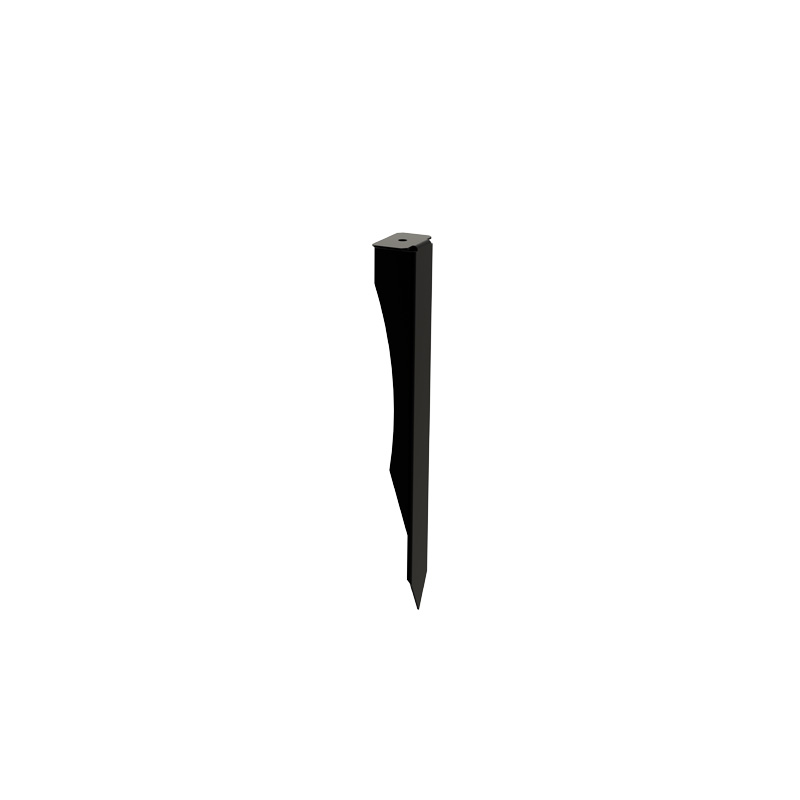

    BLUXSPEG

    Peg for 1 spot / Picchetto per 1 spot
    Black finish

    BLUXMBELT

    Tree belt / Cintura per alberi
    Black finish

    Note: Not included / Non inclusi

    AN
    Ink Black
    AM
    Mocha Brown
    AA
    Silver Grey
  • LUX SPOT / M

    Material: Anodized aluminium

    Dimensions: M

    CCT/Colored LED: 2700K, 3000K, 4000K / Blue, Green, Amber, Red

    CRI: >90

    Adjustability: Yes

    Wattage: 5,8W (max 500mA) / Coloured LEDs versions: 2,1W (max 700mA)

    Feeding: 350mA / 500mA / 700mA

    Dimmable: Yes

    IP: 67

    Finishes:

    AN

    Ink Black

    AM

    Mocha Brown

    AA

    Silver Grey

    LUX SPOT / M
    Max 500mA (5,8W)
    LXMLS03
    Optical lens
    03 17°
    06 46°
    CCT(K)
    D 2700K
    W 3000K
    N 4000K
    Delivered flux
    435lm (500mA)
    484lm (500mA)
    532lm (500mA)
    CRI
    >90
    >90
    >90
    Bezel
    D Dark
    F Flat
    Finishes
    AA Silver Grey
    AM Mocha Brown
    AN Ink Black
    Opt. Internal Accs.
    H Honeycomb
    O Opal filter
    Example Code: LXMLS0303BFAAH

    Note:
    Dimensions with Dark Bezel (W,D,H):ø48x101x85mm
    Dimensions with Flat Bezel (W,D,H):ø48x91x85mm
    Compatible controls: 1-10V / DALI / Triac / Casambi.
    Driver not included
    Cable length 2m
    Series connection

    -20/50/max350mA
    LUX SPOT / M (Coloured LEDs versions)
    Max 700mA (2,1W)
    LXMLS06
    Optical lens
    03 17°
    06 46°
    Colored LEDs
    A Amber
    B Blue
    R Red
    V Green
    Bezel
    D Dark
    F Flat
    Finishes
    AA Silver Grey
    AM Mocha Brown
    AN Ink Black
    Opt. Internal Accs.
    H Honeycomb
    O Opal filter
    Example Code: LXMLS0603BFAAH

    Note:
    Compatible controls: 1-10V / DALI / Triac / Casambi
    Driver not included
    Cable length 2m
    Series connection

    -20/50/max350mA
    Optional Internal Accessories

    H

    Honeycomb
    Black finish

    O

    Opal filter

    Note: Not included. To be requested when ordering/ Non inclusi. Da richiedere al momento dell'ordine

    Optional External Accessories

    BLUXSPEG

    Peg for 1 spot / Picchetto per 1 spot
    Black finish

    BLUXMBELT

    Tree belt / Cintura per alberi
    Black finish

    BLUXMSNOOT45

    Snoot 45%
    Black finish

    BLUXMSNOOT

    Black finish

    Note: Not included / Non inclusi

    AN
    Ink Black
    AM
    Mocha Brown
    AA
    Silver Grey

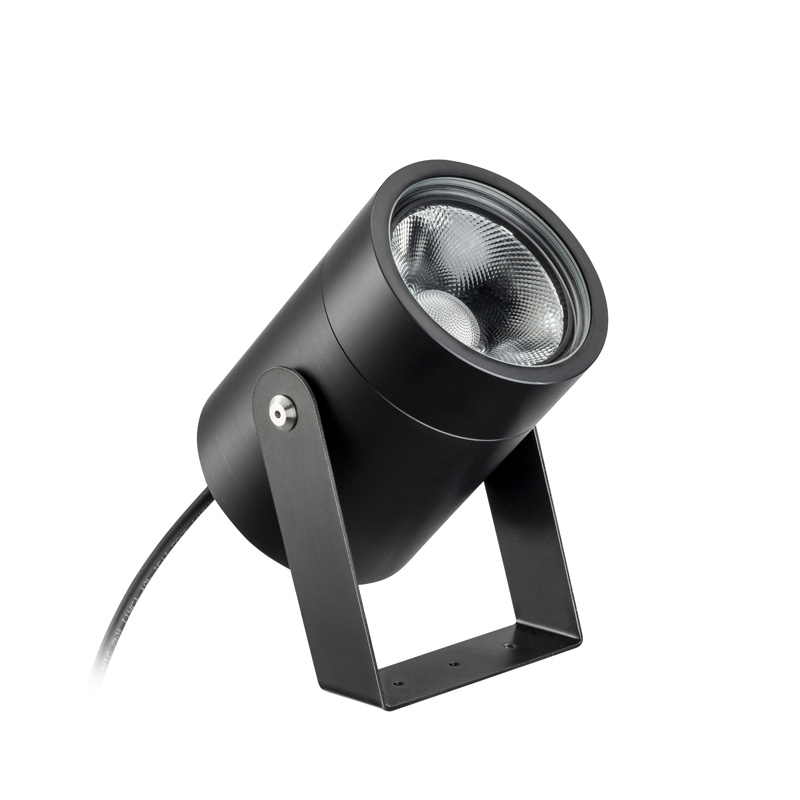

  • LUX SPOT / L

    Material: Anodized aluminium

    Dimensions: L

    CCT/Colored LED: 2700K, 3000K, 4000K

    CRI: >90

    Adjustability: Yes

    Wattage: 25,5W (max 700mA)

    Feeding: 350mA / 500mA / 700mA

    Dimmable: Yes

    IP: 67

    Finishes:

    AN

    Ink Black

    AA

    Silver Grey

    AM

    Mocha Brown

    LUX SPOT / L
    max 700mA (25,5W)
    LXLLS04
    Optical lens
    02 14°
    05 53°
    CCT(K)
    D 2700K
    W 3000K
    N 4000K
    Delivered flux
    2043lm (700mA)
    2271lm (700mA)
    2498lm (700mA)
    CRI
    >90
    >90
    >90
    Bezel
    D Dark
    F Flat
    Finishes
    AA Silver Grey
    AM Mocha Brown
    AN Ink Black
    Opt. Internal Accs.
    H Honeycomb
    O Opal filter
    Example Code: LXLLS0402DFAAH

    Note:
    Dimensions with Dark Bezel (W,D,H):ø89x138x136mm
    Dimensions with Flat Bezel (W,D,H):ø89x121x136mm
    Compatible controls: 1-10V / DALI / Triac / Casambi.
    Driver not included
    Cable length 2m, series connection

    -20/50/max350mA
    Optional Internal Accessories

    H

    Honeycomb
    Black finish

    O

    Opal filter

    Note: Not included. To be requested when ordering/ Non incluso. Da richiedere al momento dell'ordine

    Optional External Accessories

    BLUXSPEG

    Peg for 1 spot / Picchetto per 1 spot
    Black finish

    BLUXLBELT

    Tree belt / Cintura per alberi
    Black finish

    Note: Not included / Non inclusi

    AN
    Ink Black
    AA
    Silver Grey
    AM
    Mocha Brown
Filters
