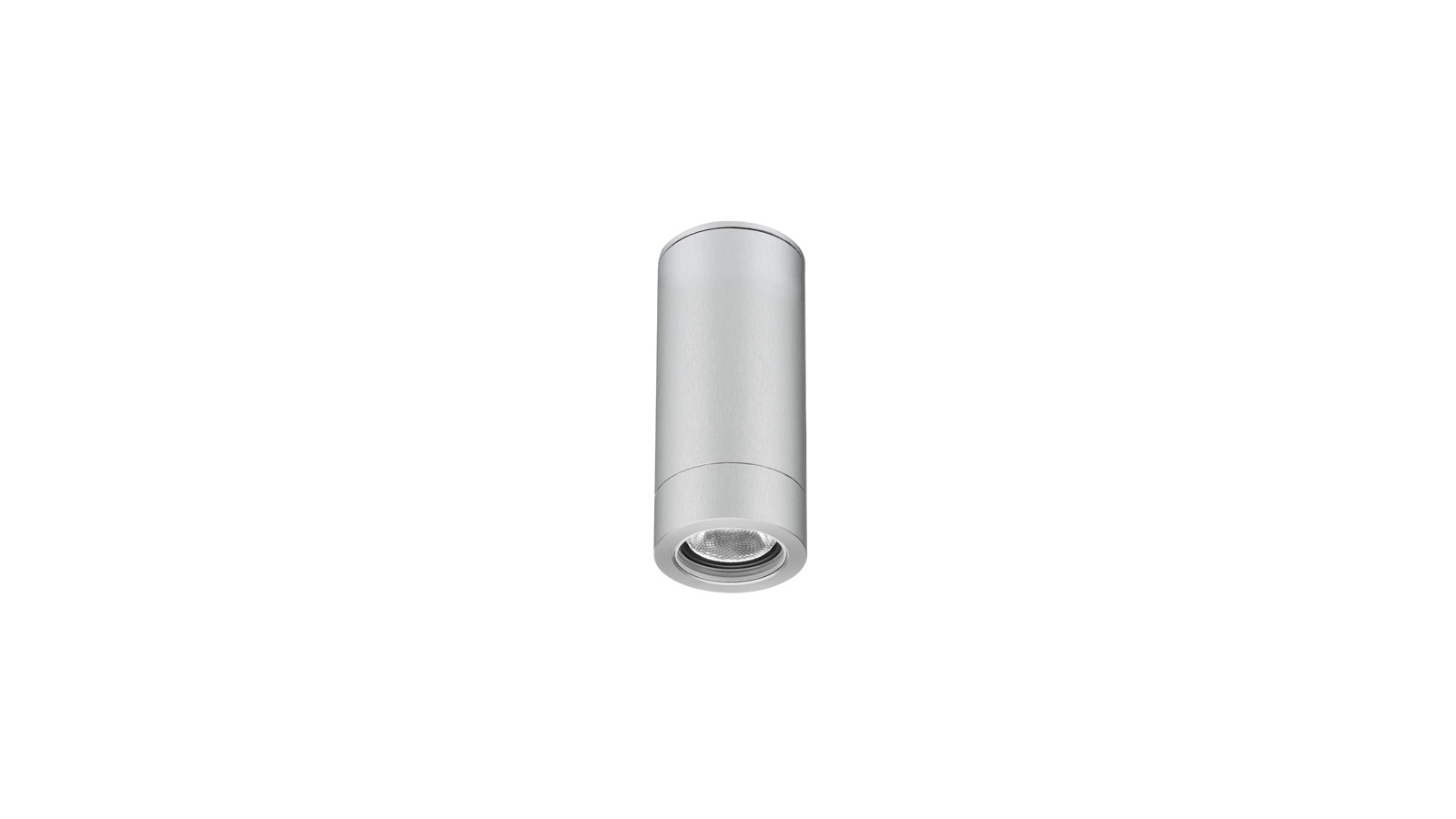

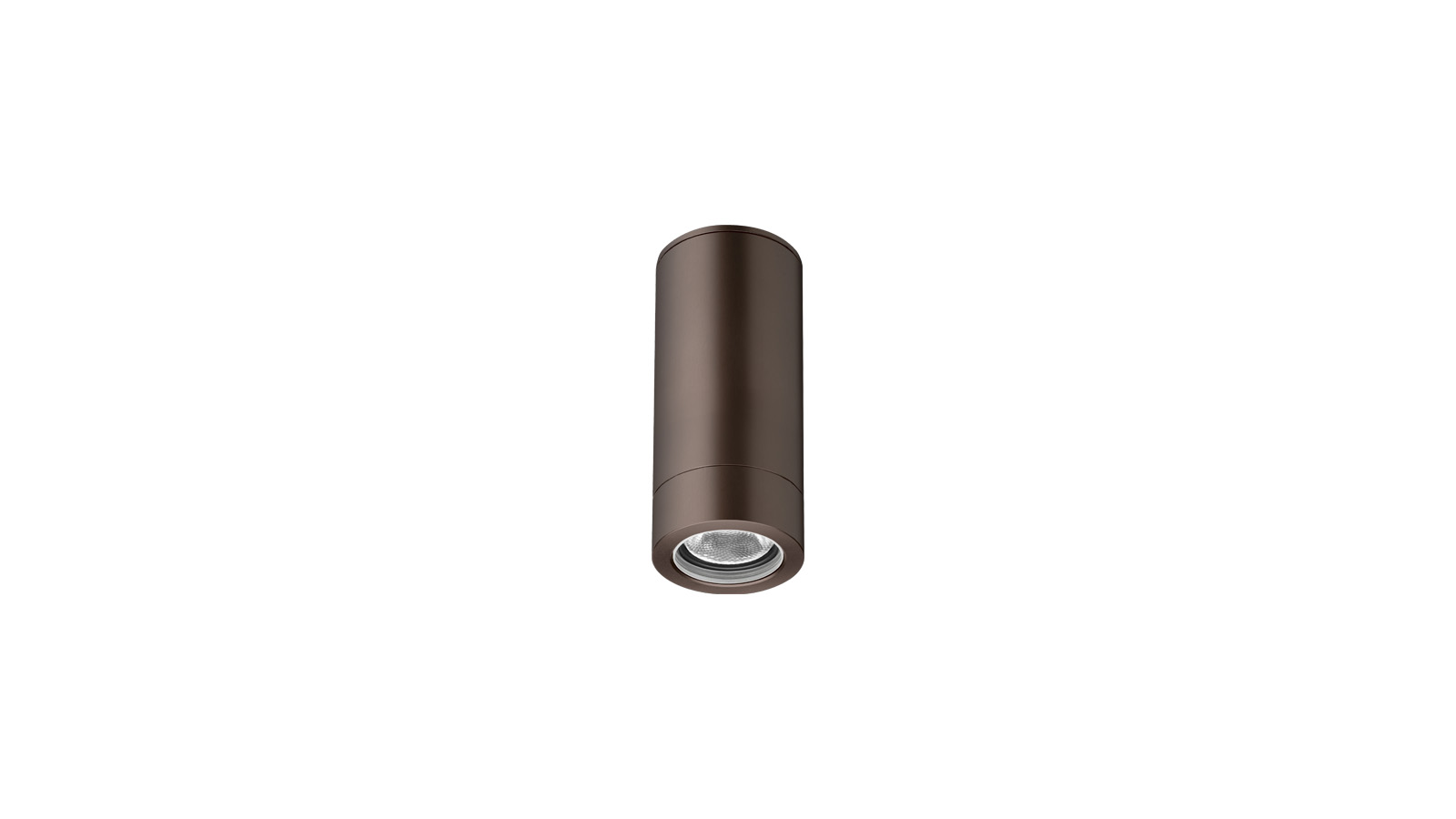

LUX SURFACE / M
Material: Anodized aluminium
Dimensions: M
CCT/Colored LED: 2700K, 3000K, 4000K
CRI: >90
Adjustability: No
Wattage: 5W
Feeding: IN220-240V
Dimmable: No
IP: 65
Finishes:
AN
Ink Black
AA
Silver Grey
AM
Mocha Brown
LUX SURFACE / M Driver on boardIN220-240V (5W)LXMCS03 Optical lens 03 17° 06 46° CCT(K) D 2700K W 3000K N 4000K Delivered flux 332lm (IN220-240V) 369lm (IN220-240V) 406lm (IN220-240V) CRI >90 >90 >90 Bezel D Dark F Flat Finishes AA Silver Grey AM Mocha Brown AN Ink Black Opt. Internal Accs. H Honeycomb O Opal filter Example Code: LXMCS0303DFAAHNote:
Dimensions with Dark Bezel (W,H):ø48x119mm
Dimensions with Flat Bezel (W,H):ø48x109mm
Driver on board
Optional Internal Accessories
H
Honeycomb
Black finish
O
Opal filter
Note: Not included. To be requested when ordering / Non inclusi. Da richiedere al momento dell'ordine
ANInk Black
AASilver Grey
AMMocha Brown -
LUX SURFACE / L
Material: Anodized aluminium
Dimensions: L
CCT/Colored LED: 2700K, 3000K, 4000K
CRI: >90
Adjustability: No
Wattage: 14W
Feeding: IN220-240V
Dimmable: No
IP: 65
Finishes:
AN
Ink Black
AA
Silver Grey
AM
Mocha Brown
LUX SURFACE / L Driver on boardIN220-240VLXLCS04 Optical lens 03 17° 06 46° CCT(K) D 2700K W 3000K N 4000K Delivered flux 1140lm (IN220-240V) 1267lm (IN220-240V) 1393lm (IN220-240V) CRI >90 >90 >90 Bezel D Dark F Flat Finishes AA Silver Grey AM Mocha Brown AN Ink Black Opt. Internal Accs. H Honeycomb O Opal filter Example Code: LXLCS0402DFAAHNote:
Dimensions with Dark Bezel(W,H):ø89x141mm
Dimensions with Flat Bezel (W,H):ø89x124mm
Driver on board
Optional Internal Accessories
H
Honeycomb
Black finish
O
Opal filter
Note: Not included. To be requested when ordering / Non inclusi. Da richiedere al momento dell'ordine
ANInk Black
AASilver Grey
AMMocha Brown
