LUX CEILING

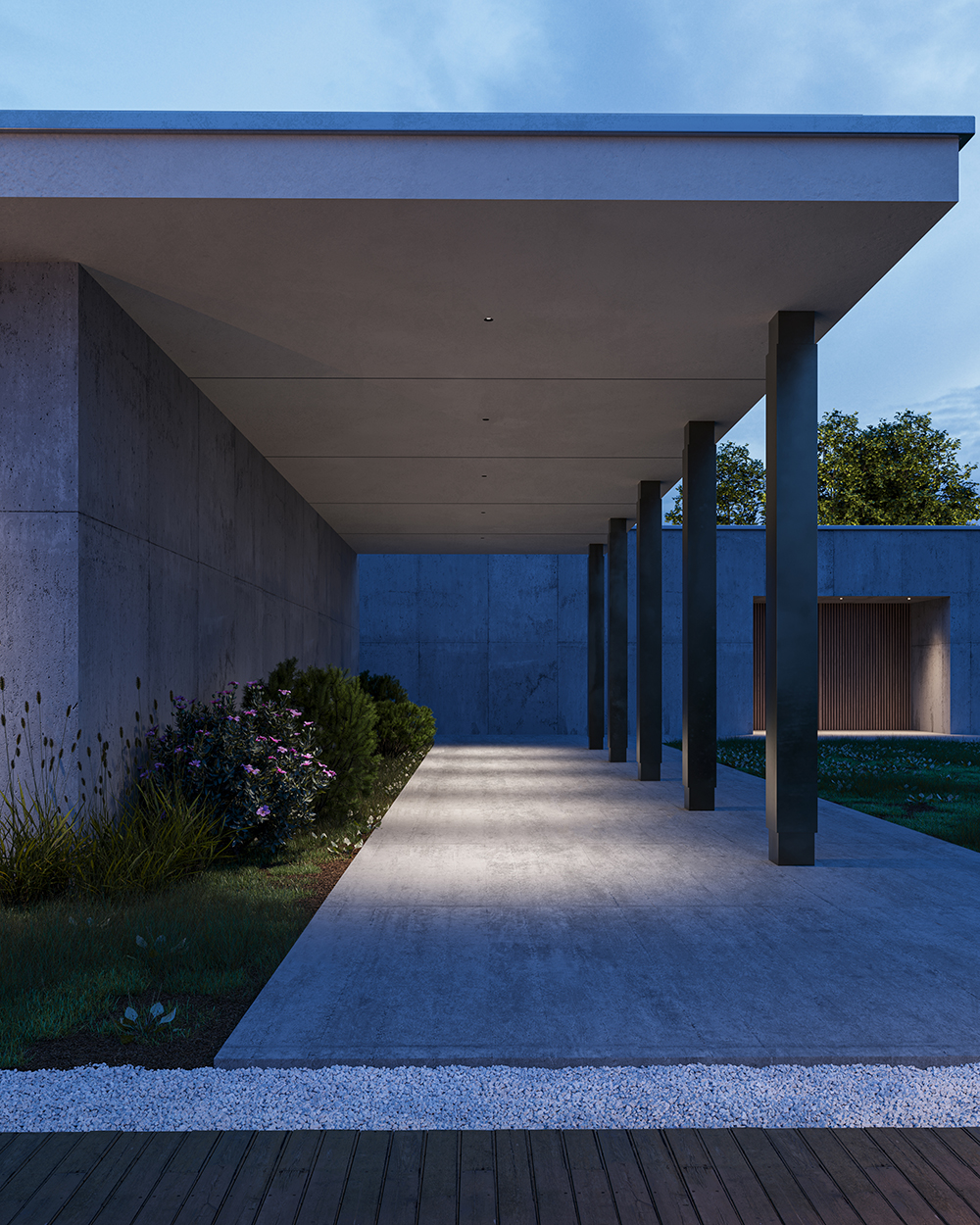

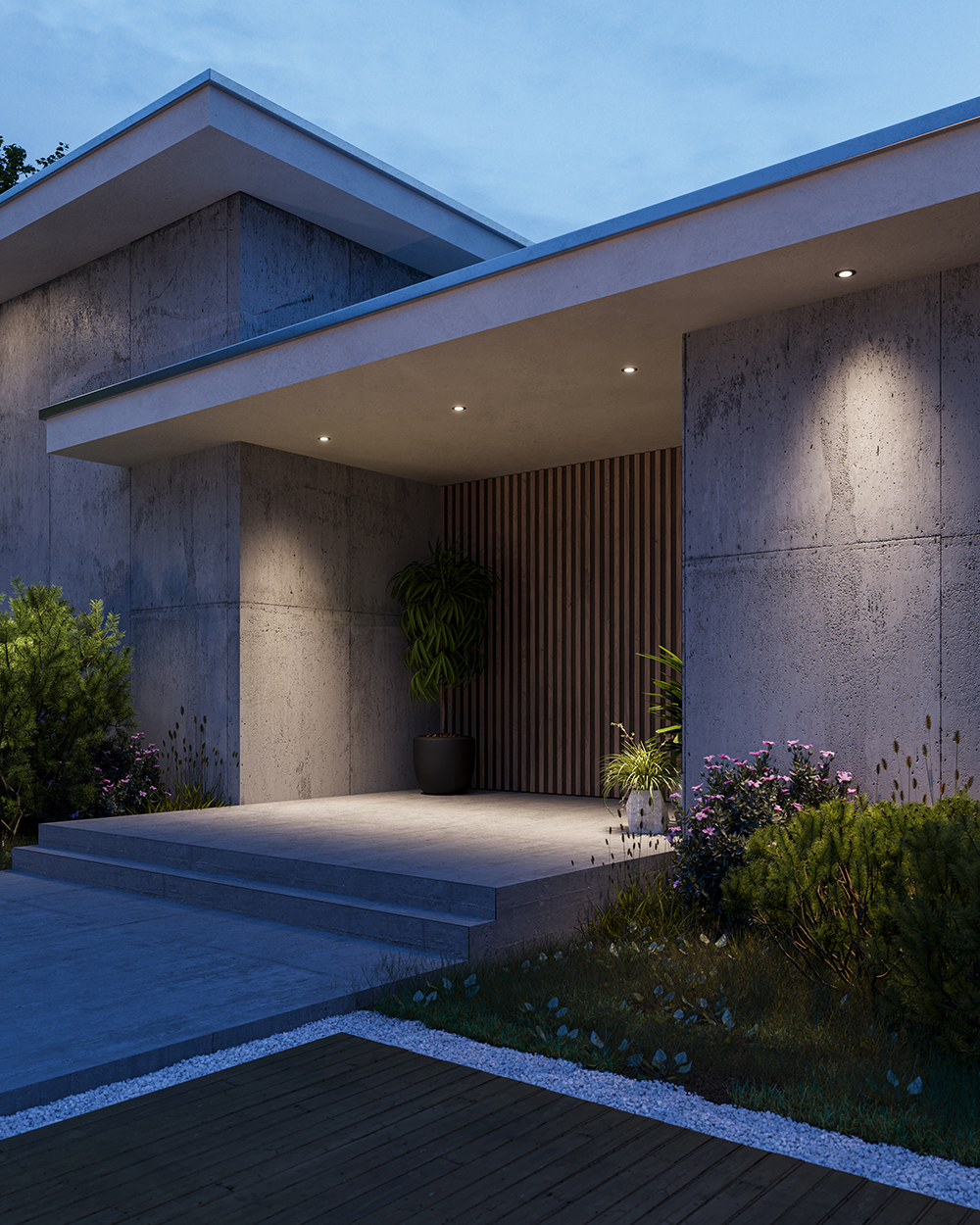

Downlighting is ideal for creating an elegant and sophisticated atmosphere. Its versatility makes it suitable for various environments, providing both discreet and decorative light. The Lux Ceiling range, available in both Trim and Trimless versions, offers a selection of downlight spots with concealed lighting. It is available in different sizes, colour temperatures, finishes and optical beams. The use of accessory filters also allows further flexibility in terms of application.
Technical drawing
Technical Details

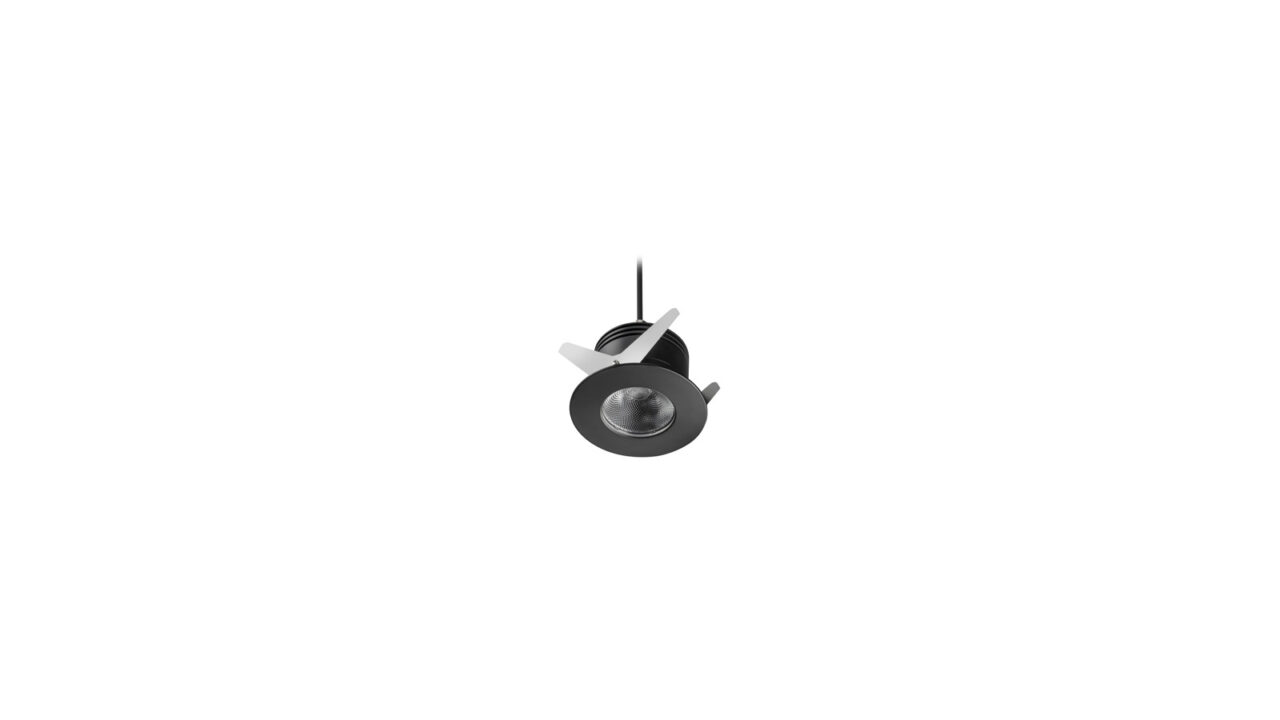

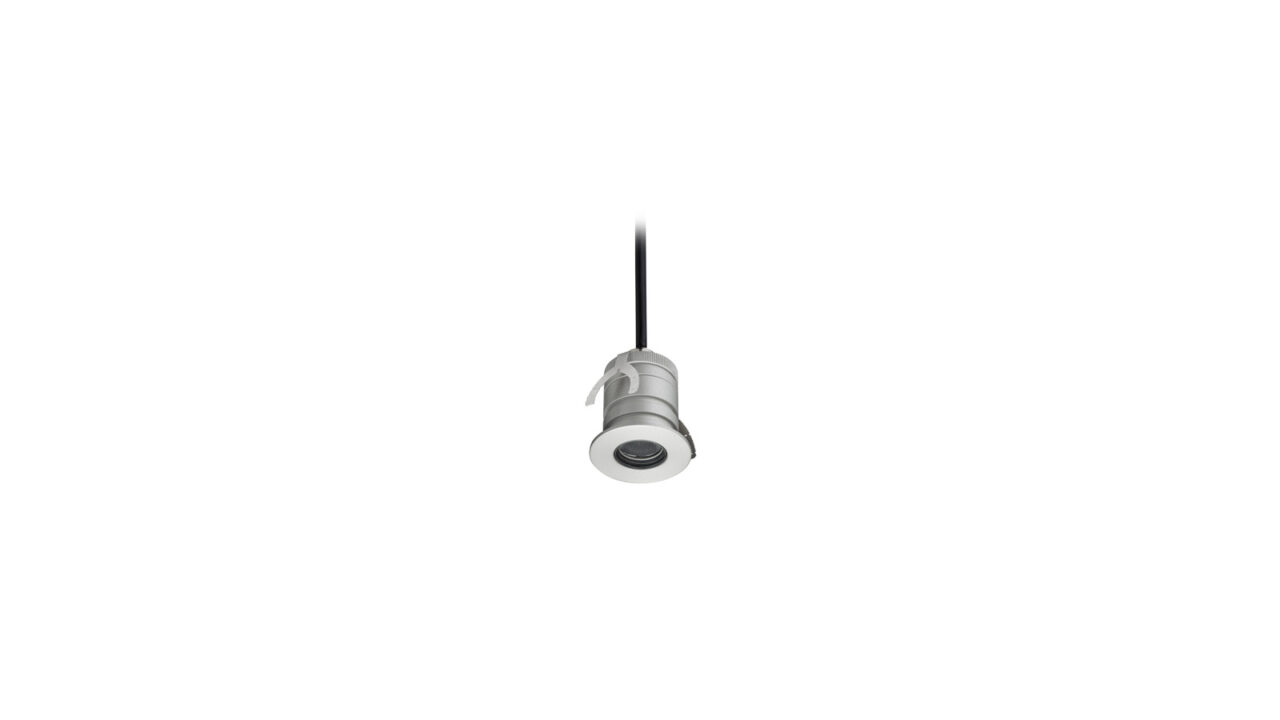

- Sizes Trim versions: S Ø1.73″x2.20″ | M Ø2.44″x2.76/3.03″ | L Ø4.88″x3.58″

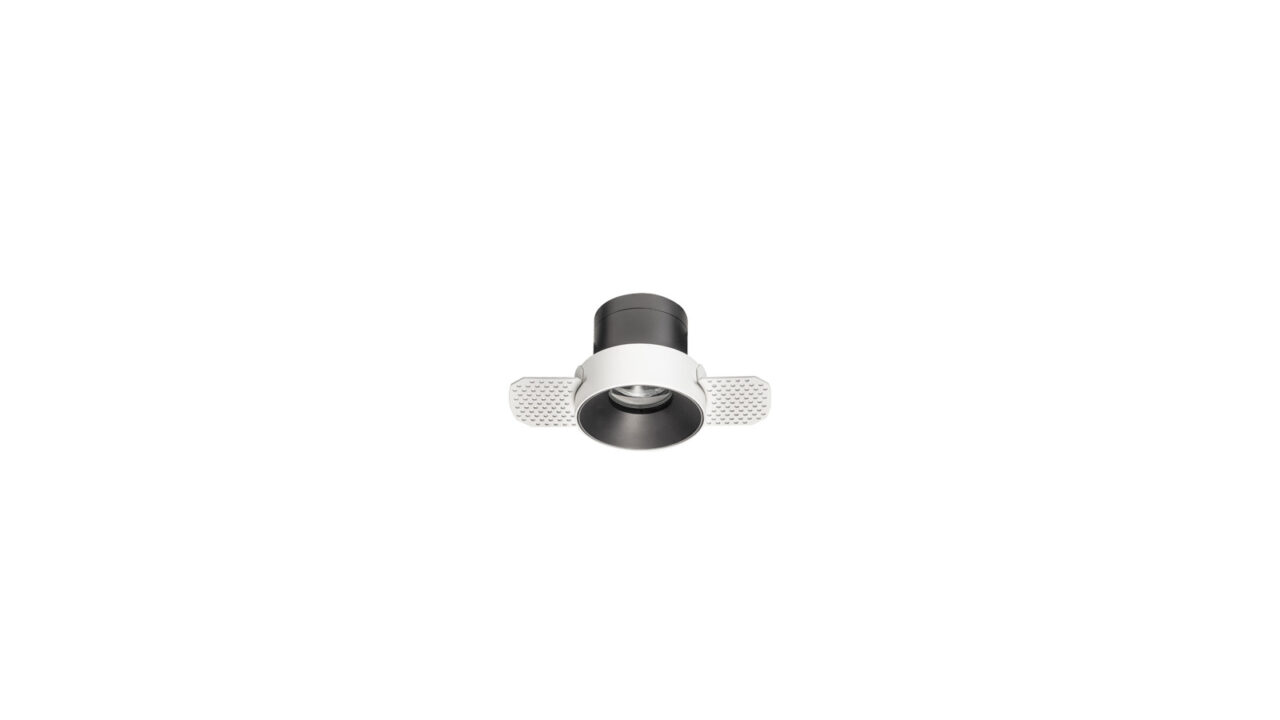

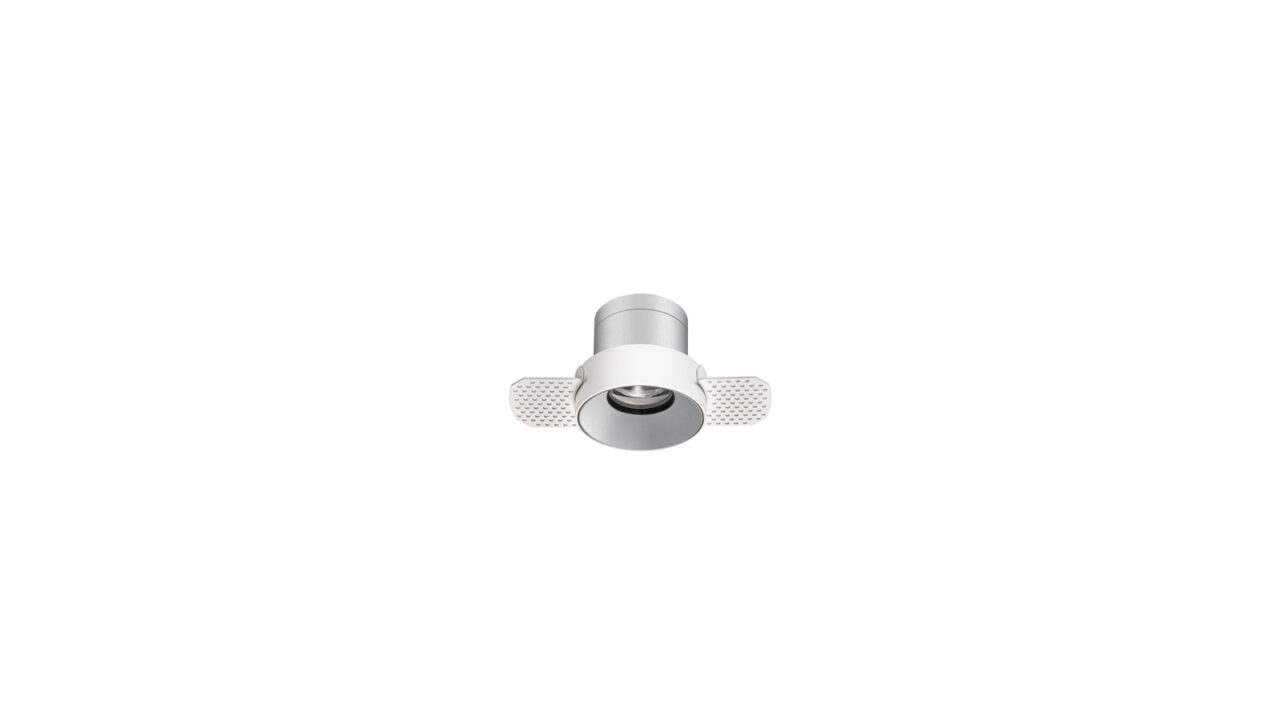

- Sizes Trimless versions: M Ø4.88″x3.22″
- LEDs: 2700K, 3000K, 4000K

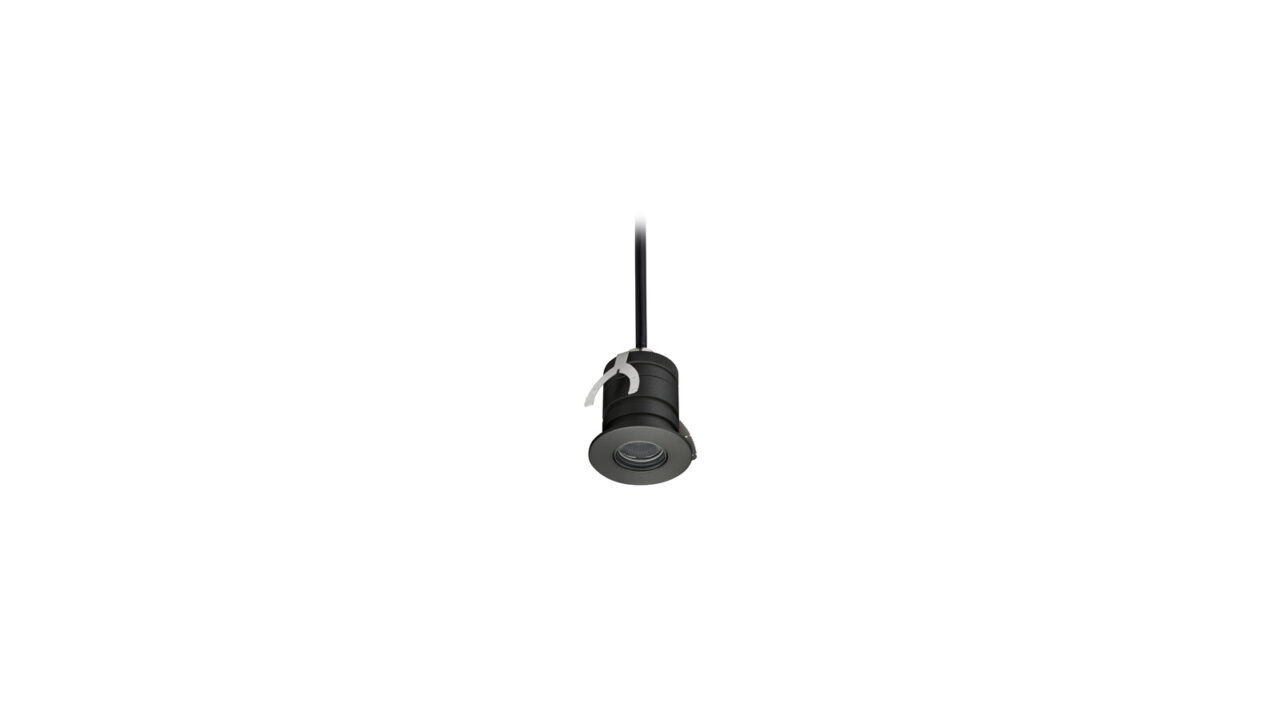

- Beam option Trim S: 11°, 25°, 46°

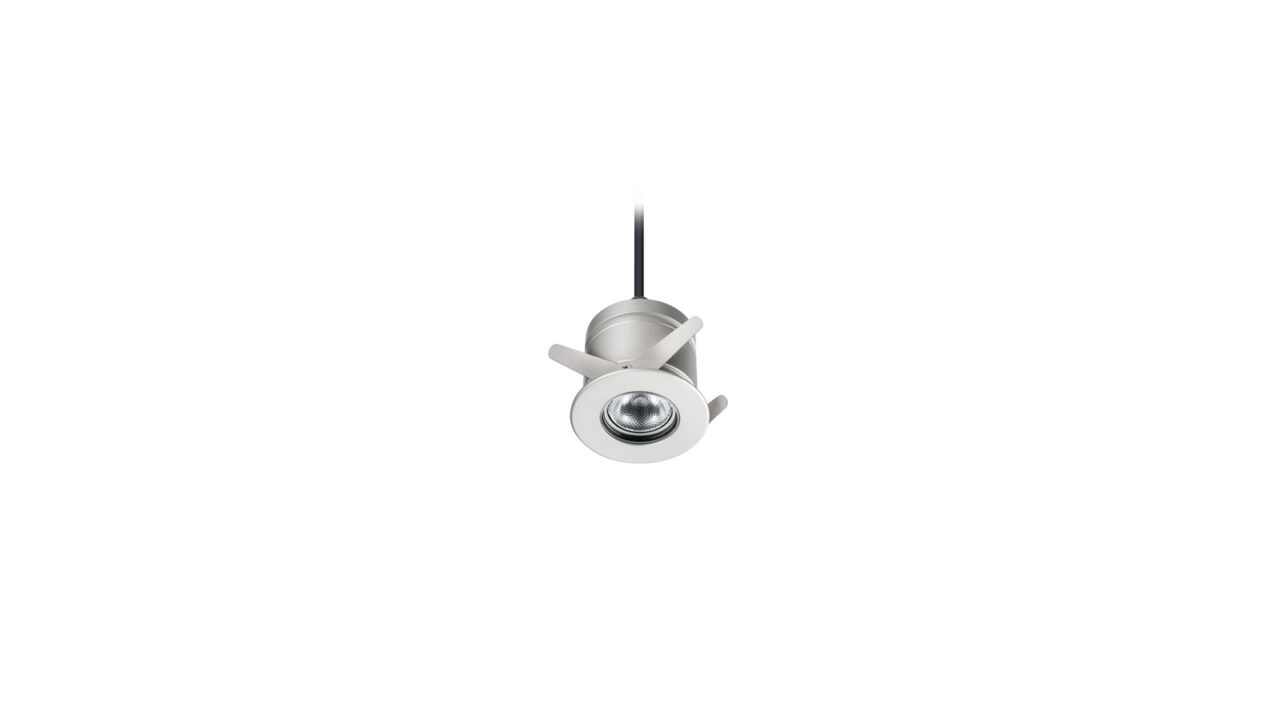

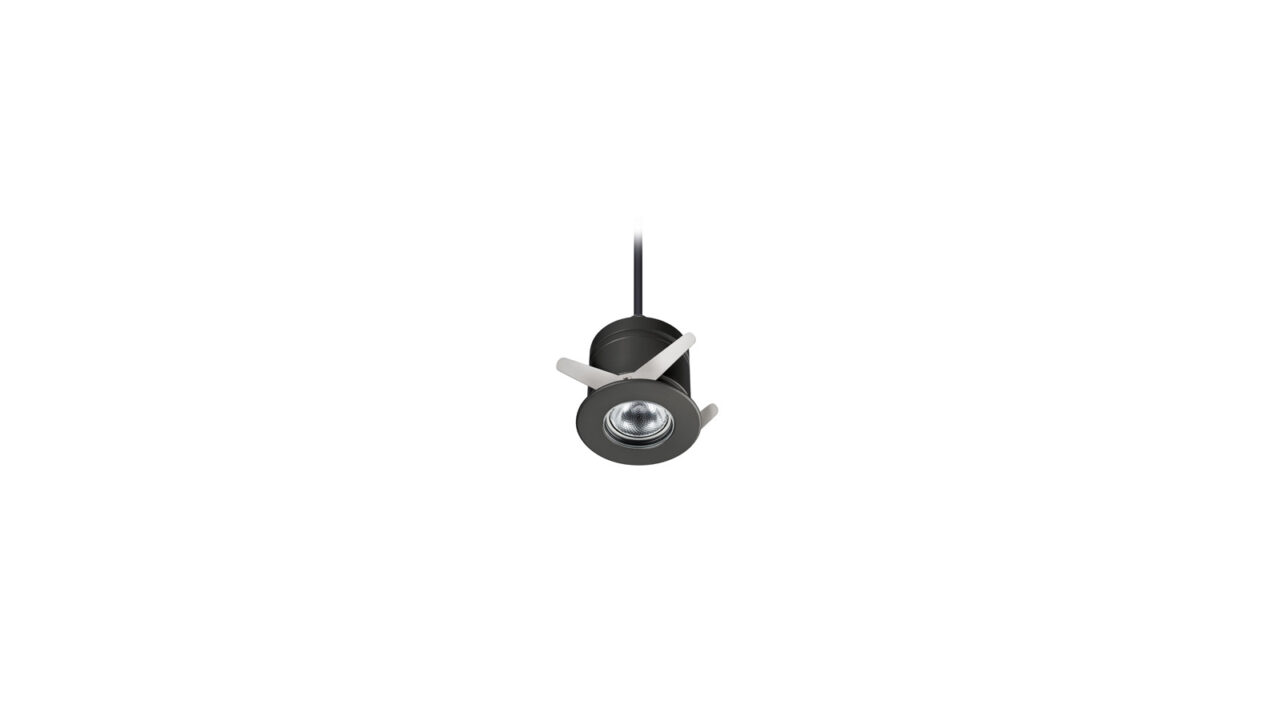

- Beam option Trim M: 17°, 32°, 46°, Asy

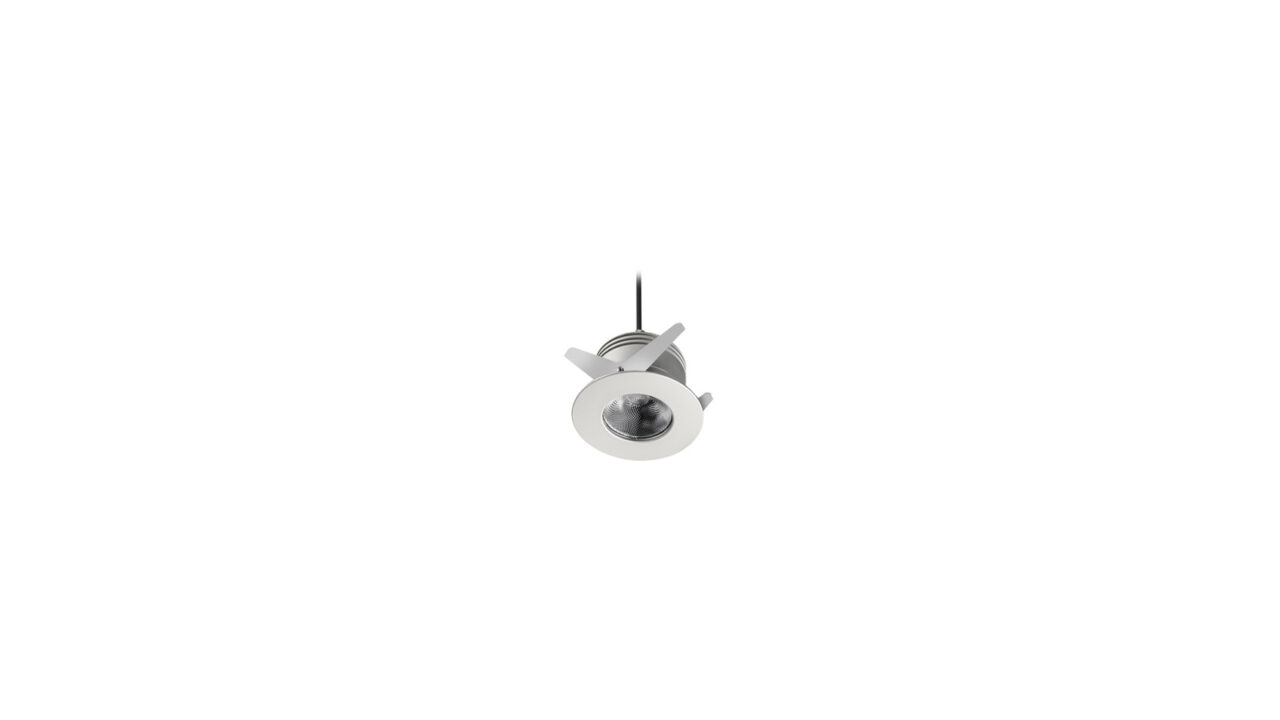

- Beam option Trim L: 14°, 34°, 53°
- Beam option Trimless M: 17°, 32°, 46°
- Bezel option: Flat, Dark (only for Trim M)
- CRI>90
- Lumen: 484 lm ( M 3000K 500mA)
- Power consumption S: 2.3W (max 700mA) / Coloured LED 2.3W (max 700mA)
- Power consumption M: 5.8W (max 500mA) / Coloured LED 2.3W (max 700mA)
- Power consumption L: 25.5W (max 700mA)
- Feeding: 350mA / 500mA / 700mA
- Dimmable
- Finishes: Ink Black, Silver Grey
- Optional internal accessories S/M/L: Honeycomb, Opal Filter
- Wet Rated
