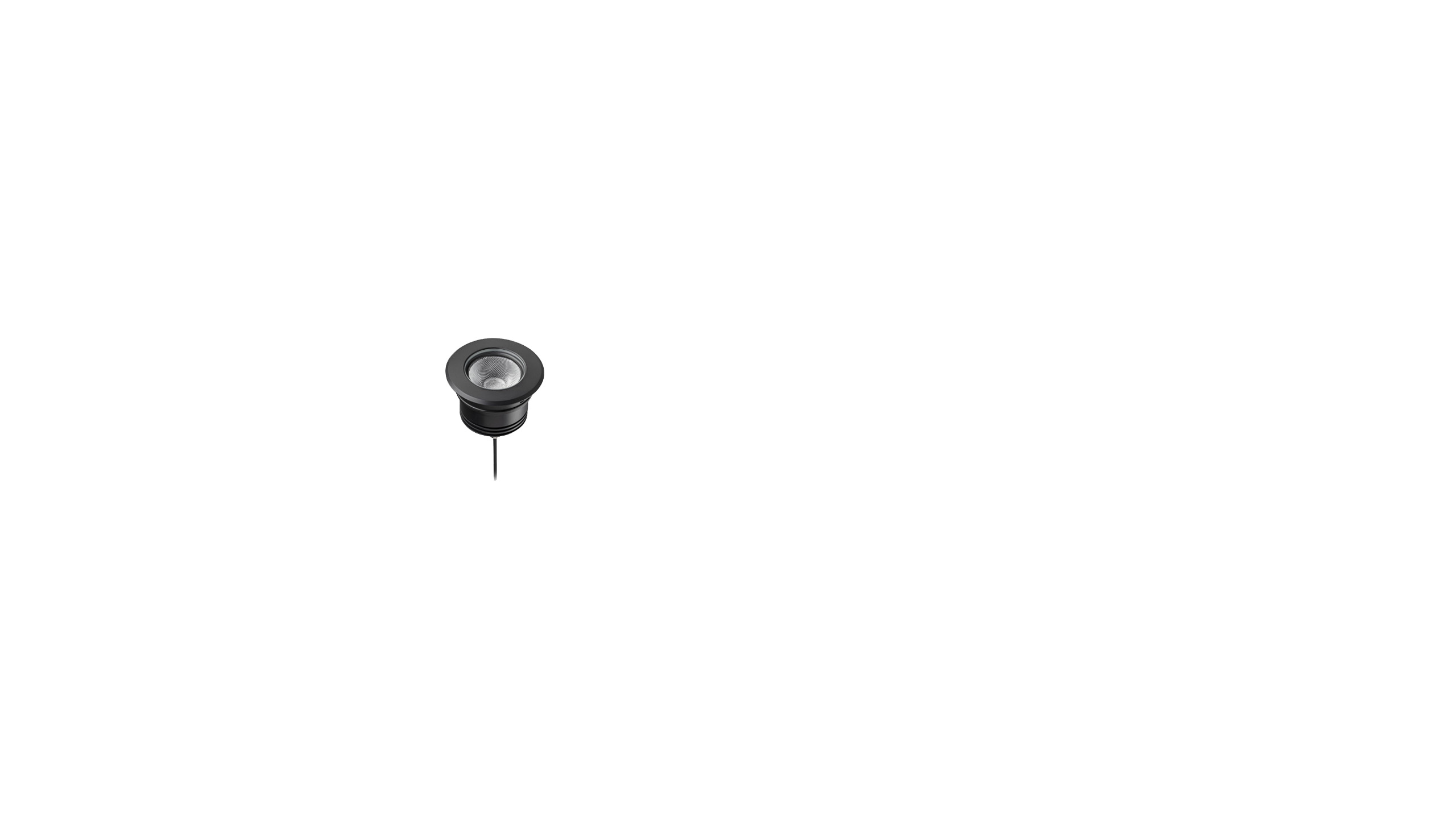

LUX FLOOR

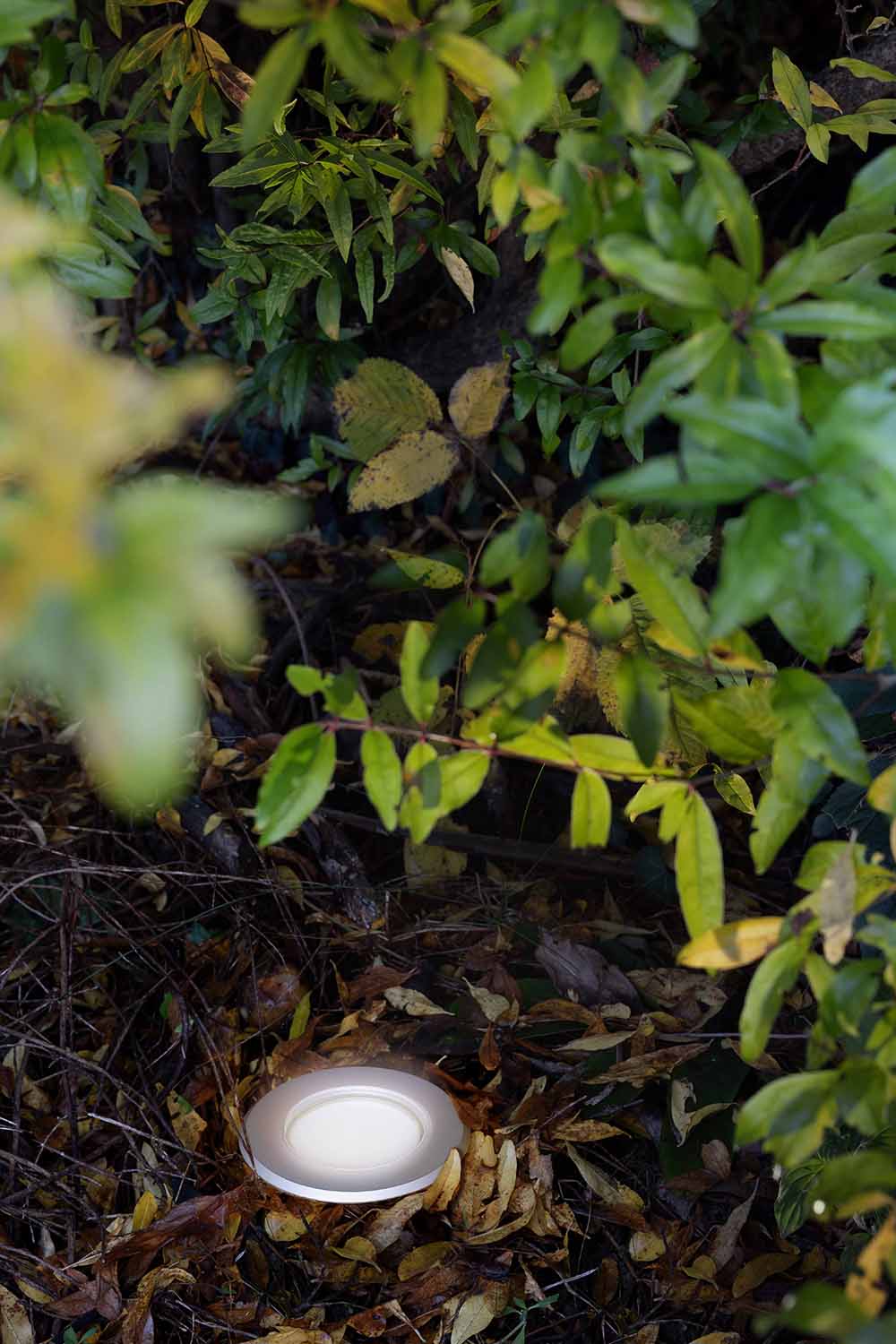

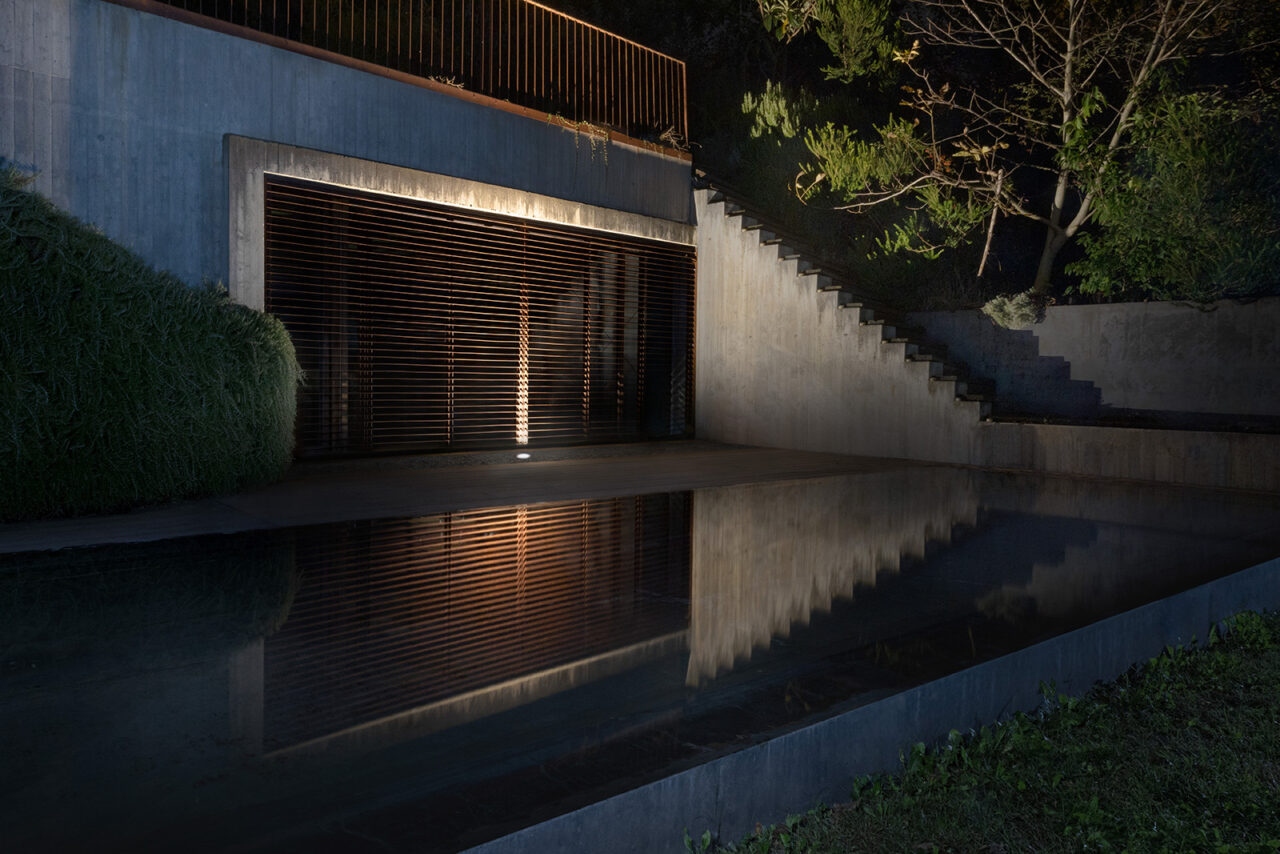

The dimensions, colour temperatures and finishes ensure compatibility and versatility, transforming any space with functional, refined and yet decorative lighting. The Lux Floor range provides versatile solutions for floor installations, available in several sizes, finishes, color temperatures, and optical beams. Suitable for illuminating pathways and façades, it includes an IP68 version for underwater applications.
Technical drawing
Technical Details
- Sizes: XS Ø1.02″x1.55″ | S Ø1.73″x2.20″ | M Ø2.44″x2.67″ | L Ø4.88″x3.70″
- LEDs: 2700K, 3000K, 4000K, 5000K (only for XS and S versions)
- Beam option XS: 65°
- Beam options S: 11°, 25°, 46°
- Beam options M: 17°, 32°, 46°, Asy
- Beam options L: 14°, 34°, 53°
- Bezel option: Flat
- CRI>90
- Lumen: 484 lm ( M 3000K 500mA)
- Power consumption XS: 1.2W (max 350mA)
- Power consumption S: 2.3W (max 700mA) / Coloured LED 2.1W (max 700mA)
- Power consumption M: 5.8W (max 500mA) / Coloured LED 2.3W (max 700mA)
- Power consumption L: 25.5W (max 700mA)
- Feeding: 350mA / 500mA / 700mA
- Dimmable

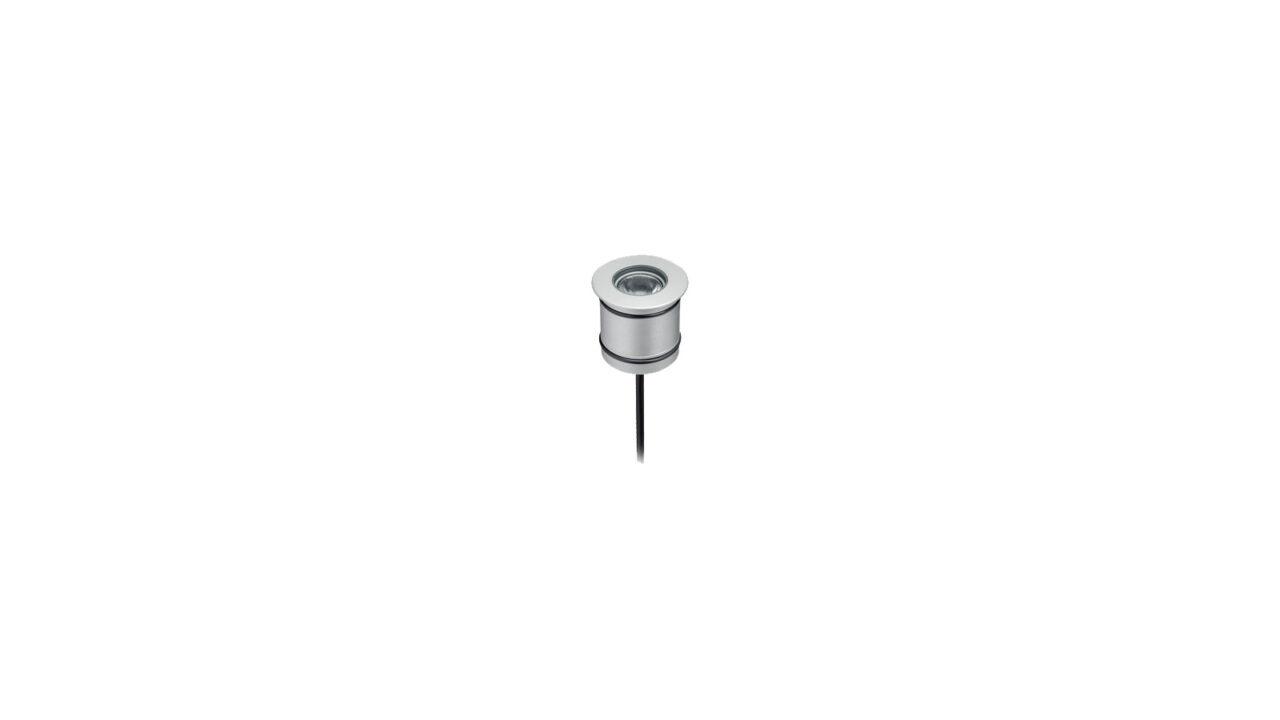

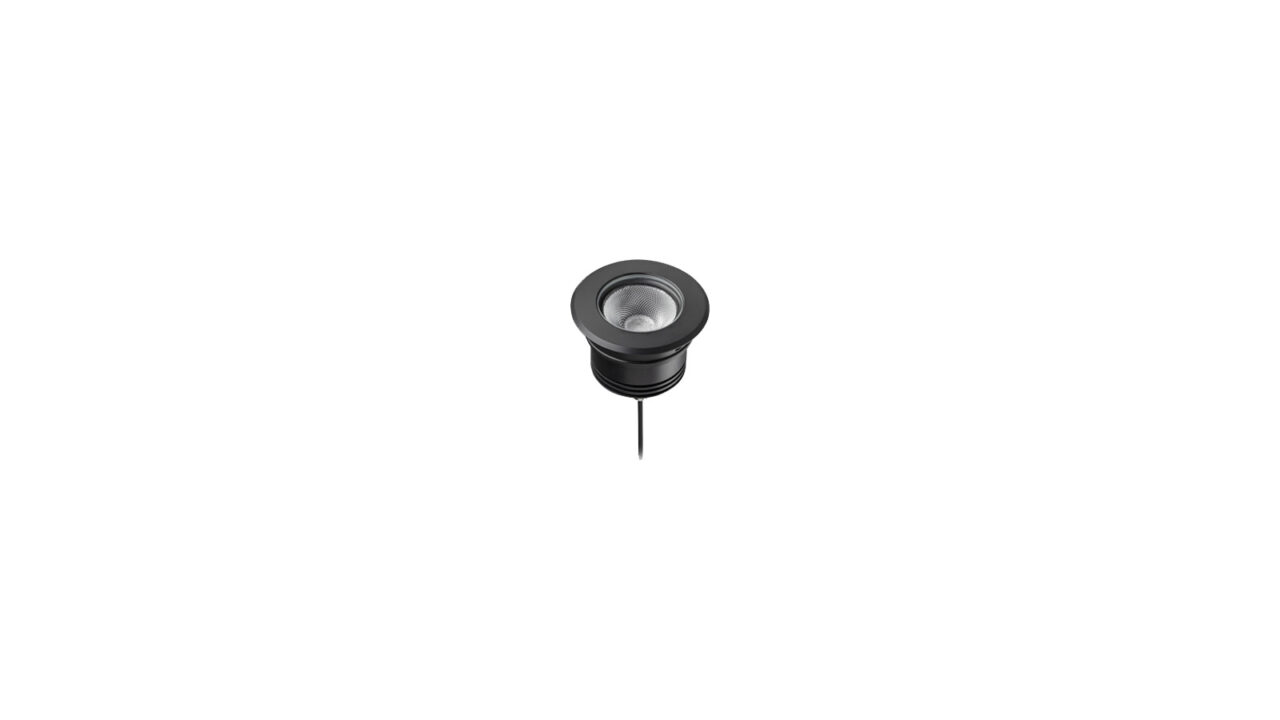

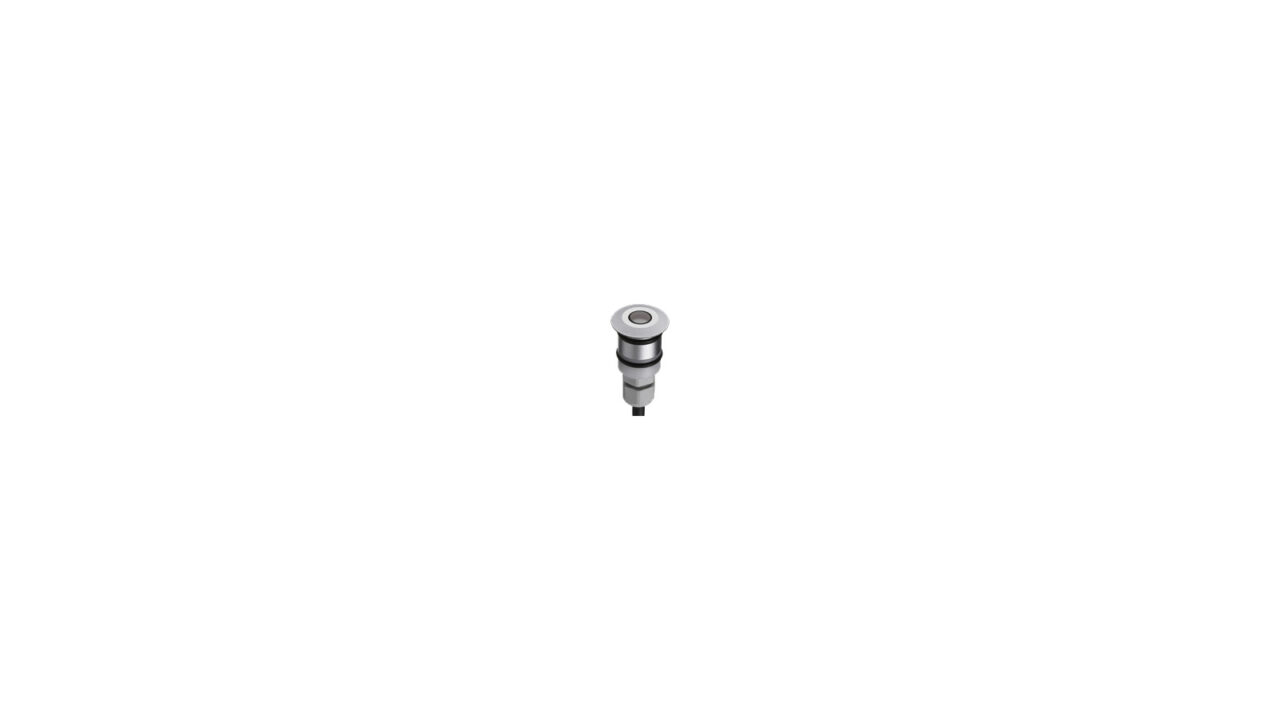

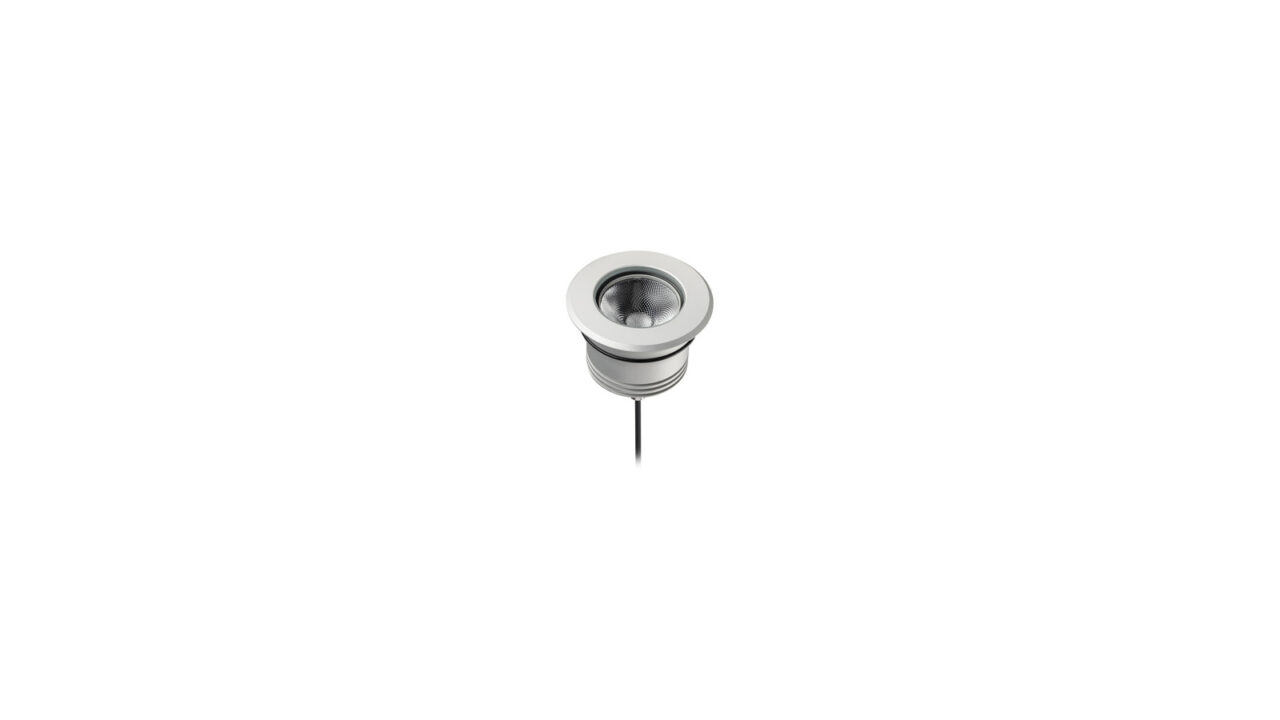

- Finishes: Satin Chrome (XS, S). Ink Black, Silver Grey (M, L)
- Optional internal accessories S/M/L: Honeycomb, Opal Filter
- Optional external accessories XS/S/M/L: Recessed Box
- Wet Rated
